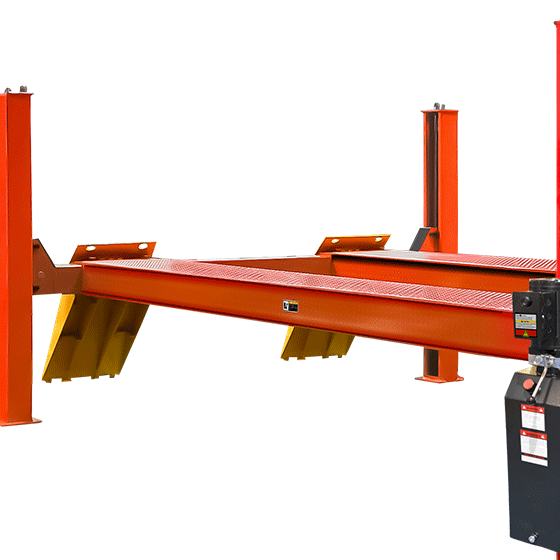

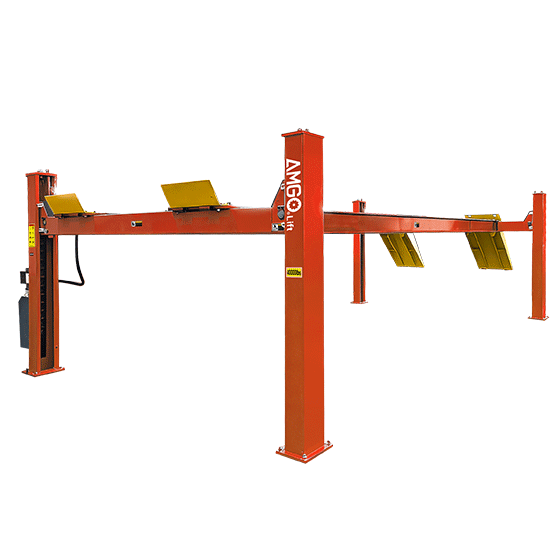

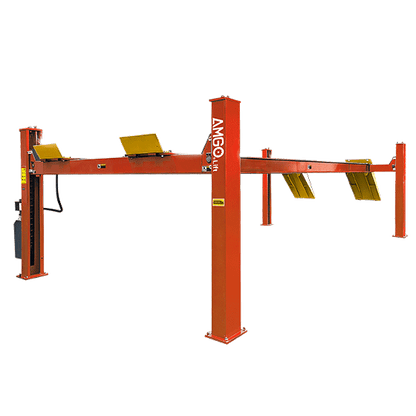

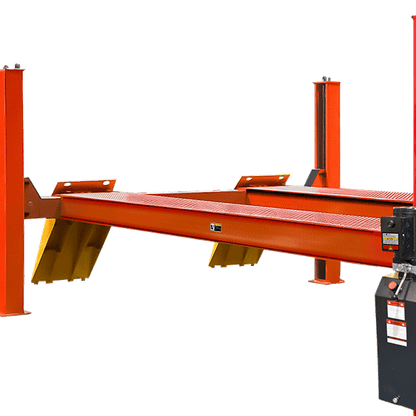

AMGO Hydraulics PRO-40 40,000 lb Super Duty General Service Four Post Lift

AMGO Hydraulics PRO-40 40,000 lb Super Duty General Service Four Post Lift

Regular price
Price: $26,250.00
Regular price
List Price:
Sale price
Price: $26,250.00
10% off | Coupon Code: CARLIFT10 | Ends:
View Cart

Description

The AMGO® PRO-40 delivers unmatched capacity at 40,000 lbs, making it the industry standard for heavy-duty vehicle service. Built for professional shops handling the largest trucks and commercial vehicles, this four-post lift combines robust engineering with practical versatility. The adjustable platform offers two width configurations, allowing technicians to safely service everything from full-size pickups to heavy commercial rigs without repositioning equipment. Designed with operator comfort and safety as core priorities, the PRO-40 reduces fatigue during extended service intervals while maintaining the precision alignment and stability demanding jobs require. An essential investment for shops committed to professional-grade performance.

Features

•  40,000 lbs capacity;

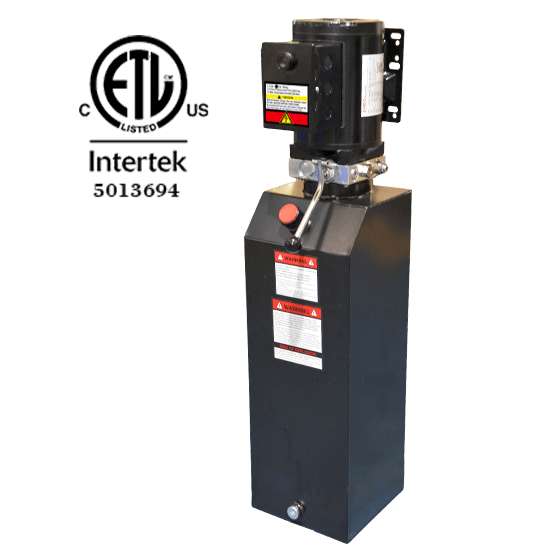

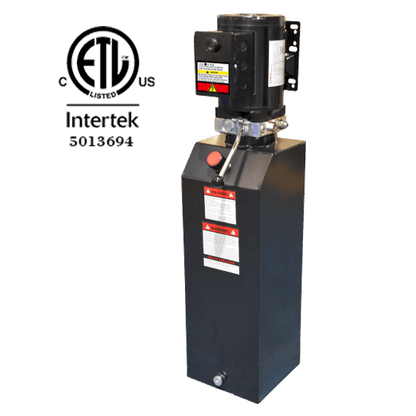

•  AMGO ETL certified power unit comes as standard;
•  Mechanical self-locking safety device with air-driven lock release;
•  Primary multiple safety locks and cable-slack protection system come standard;.
•  Cable-driven, utilizing aircraft standard high quality cables;
•  Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve;
•  Non-skid diamond platforms allow two width setting.

Specifications
PRO-40 Specifications
Model PRO-40
Lifting Capacity 40,000 Ibs
Lifting Time 183s
Overall Length (Inc Ramps) A 366 1/8"
Outside Edge of Crossbeams B 307 1/16"
Overall Width C 151 1/2"
Width Between Columns D 133 15/16"
Max. Lifting Height E 75 3/8"
Max. Lock Height to top of runway 72 3/16"
Overall Height F 92"
Minimum Height G 10 3/8"
Max. Underneath Height H 66 5/16"
Max. Lock Underneath Runway 63 3/16"
Drive-Thru Clearance I 119 13/16"
Width Between Runways J 46"
54 1/16“
Outside Edge of Runways K 101 7/8"
110”
Gross Weight 8,503bs
Motor 2.0HP
