AMGO® Hydraulics 409-HPX 9,000 lb
AMGO® Hydraulics 409-HPX 9,000 lb
- Regular price
- Price: $5,760.00
- Regular price
- List Price:
- Sale price
- Price: $5,760.00
- Unit price
- per
10% off | Coupon Code: CARLIFT10 | Ends:
Couldn't load pickup availability
PRODUCT DESCRIPTION
Description

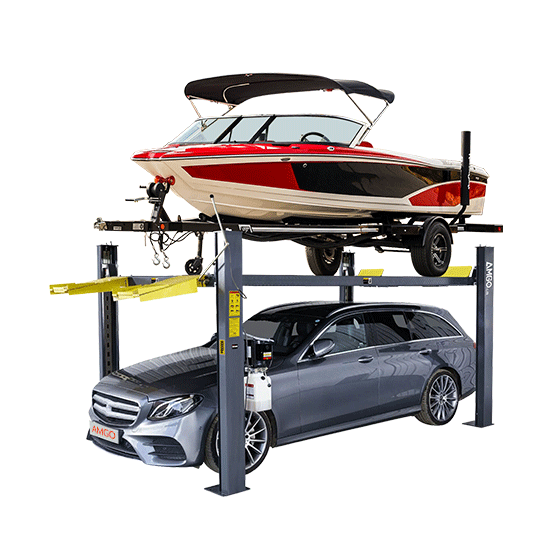

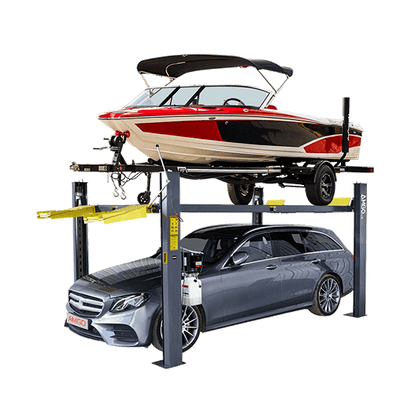

The AMGO® Hydraulics 409-HPX delivers professional-grade storage for serious boaters. Built with a 9,000 lb capacity and extended frame design, it handles heavier vessels with confidence. The hydraulic lift system ensures smooth, secure raising and lowering—ideal for protecting your investment while maximizing garage space. Step up to the strength and stability your larger boat demands.
Features
- Lifting capacity: 9,000lbs

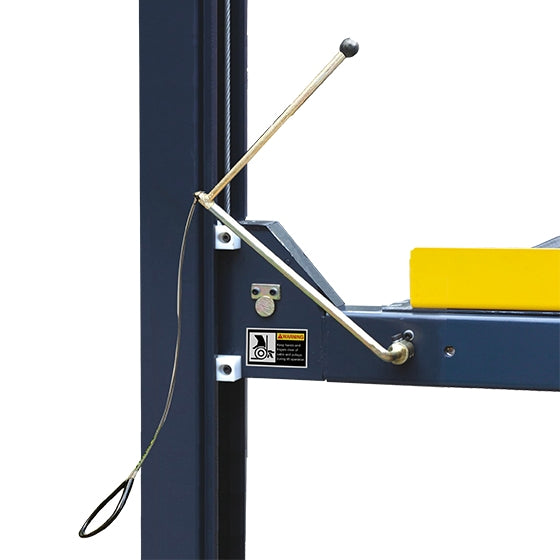

- AMGO’s proprietary manual single-point release concealed lock system (no air source required)
- Dual safety mechanisms with primary safety locks and cable-slack protection

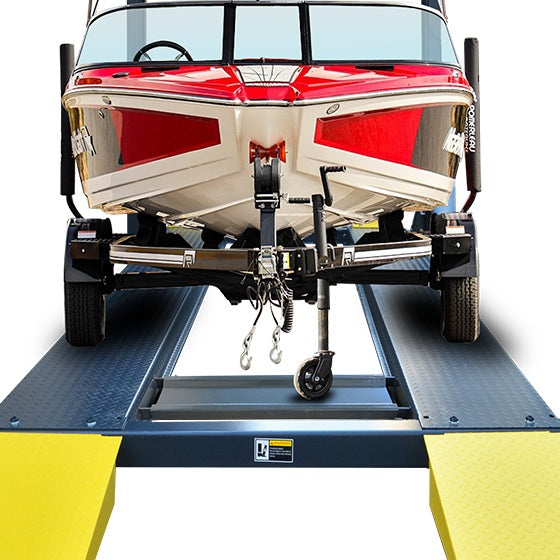

- Integrated non-slip diamond platforms

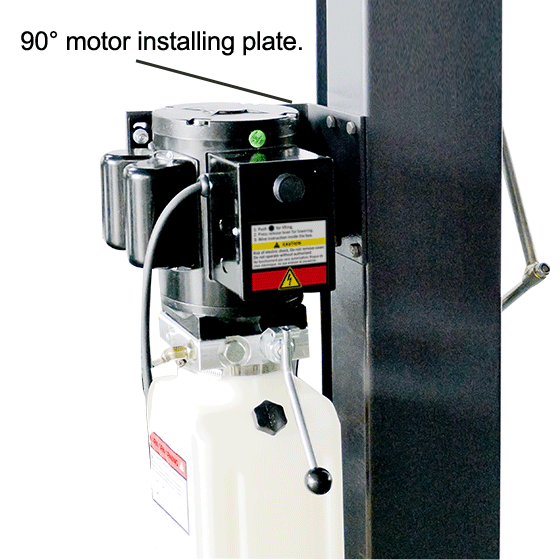

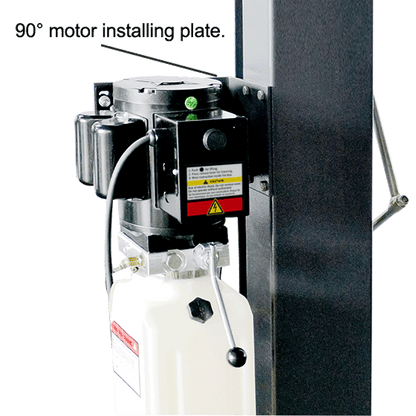

- Flexibility to install power unit at any corner
- Platform with two width settings to accommodate various trailers
- Standard foldable drive-in ramps
- ETL certified Power unit
- With 16″ of additional length over the 408-HPX, this model is the ideal solution for longer boat.
Specifications
| Model 409-HPX | Boat storage lift | |
|---|---|---|
| Lifting Capacity | 9,000 lbs | |
| Lifting Time | 174s | |
| Overall Length (Inc Ramps) | A | 238 1/8" |
| Overall Length (Without Ramps) | B | 204 11/16" |
| Overall Width | C | 131 7/8" |
| Width Between Posts | D | 122" 3/16” |
| Max. Lifting Height | E | 88 1/16" |
| Max. Locking Height | 85 5/16" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/8" |
| Max. Underneath Height | H | 82 9/16" |
| Max. Lock Underneath Runway | 79 13/16" | |
| Drive-Thru Clearance | I | 111" |
| Width Between Runways | J | 46 1/2" (narrow) 64 15/16" (wide) |
| Outside Edge of Runways | K | 86 1/2" (narrow) 104 15/16"(wide) |
| Gross Weight | 2,061 lbs | |
| Motor | 1.0HP,110V/60Hz | |
| QTY of Container | 12 Units/20'GP |
