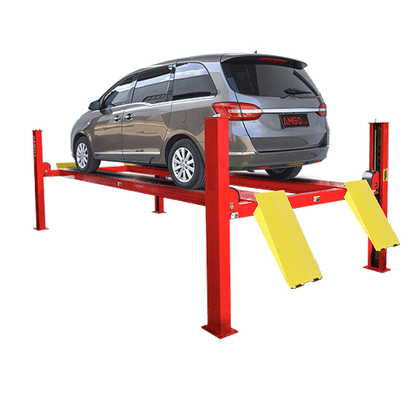

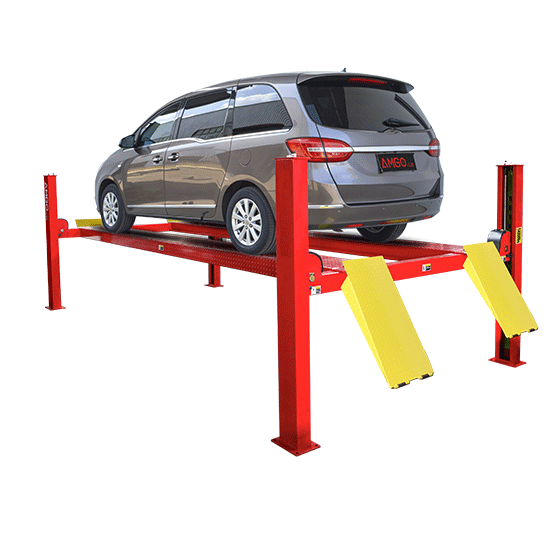

AMGO® Hydraulics PRO-14 14,000 lb General Service Model
AMGO® Hydraulics PRO-14 14,000 lb General Service Model
- Regular price
- Price: $8,120.00
- Regular price
- List Price:
- Sale price
- Price: $8,120.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
Description
The AMGO® Hydraulics PRO-14 delivers commercial-grade lifting power with a robust 14,000-lb capacity, making it ideal for cars, vans, trucks, and motorhomes. Built with heavy-duty construction, this general service model features a dual safety lock system with multiple lock points—all automatically engaged and released via air power for smooth, secure operation. Perfect for professional shops and demanding workshop environments where reliability and safety are non-negotiable.
Features
• 14,000 lbs capacity
• AMGO ETL certified power unit comes as standard
• Mechanical self-locking safety device with air-driven lock release
• Primary multiple safety locks and cable-slack protection system come standard
• Cable-driven, utilizing aircraft standard high quality cables
• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve
• Non-skid diamond platforms
Specifications
| Model | PRO-14 | |
|---|---|---|
| Lifting Capacity | 14,000 Ibs | |
| Lifting Time | 81s | |
| Overall Length (Inc Ramps) | A | 258 9/16" |
| Outside Edge of Crossbeams | B | 210 5/16" |
| Overall Width | C | 130 7/8" |
| Width Between Columns | D | 116" |
| Max. Lifting Height | E | 75 9/16" |
| Max. Lock Height to top of runway | 72 7/16" | |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 7 7/8" |
| Max. Underneath Height | H | 68 7/8" |
| Max. Lock Underneath Runway | 65 3/4" | |
| Drive-Thru Clearance | I | 102 1/16" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 86" |
| Gross Weight | 3,111 lbs | |
| Motor | 2.0HP |
