PRODUCT DESCRIPTION
Description
The AMGO 407-P is a commercial-grade four-post parking lift engineered for space-constrained environments. Its compact footprint occupies significantly less floor space than comparable models, making it ideal for busy shops and home garages alike. The patented concealed lock control mechanism delivers convenient operation while maintaining a clean, integrated design. Back-to-back installation capability maximizes your workshop layout flexibility. Built for durability with minimal maintenance demands, this lift combines practical engineering with straightforward installation—no complex setup required.
Features
● Lifting capacity: 7,000lbs
● AMGO ETL certified power unit comes standard
● High quality dual hydraulic direct-drive cylinders

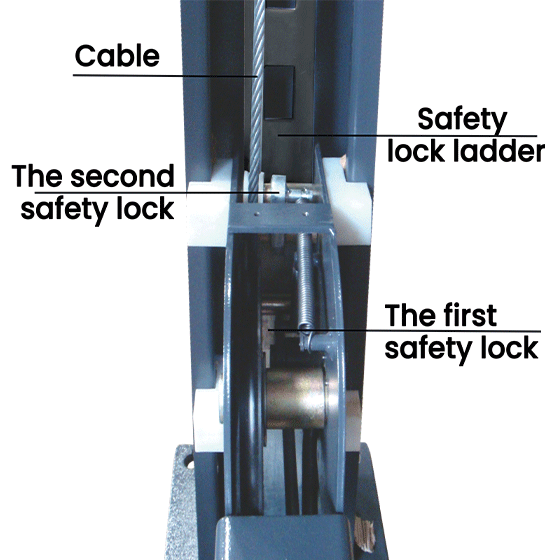

● AMGO’s patented design concealed safety lock control device with a manual single-point lock release
● Aero standard cables come standard
● Non-slip platforms come with foldable drive-in ramps
● Supports back-to-back installations to save space
● Power side column can be installed at any corner
Specifications
| Model | 407-P | |
|---|---|---|
| Lifting Capacity | 7,000 Ibs | |
| Lifting Time | 95s | |
| Overall Length (Inc Ramps) | A | 185 13/16" |
| Outside Edge of Crossbeams | B | 145 11/16" |
| Overall Width | C | 94 13/16" |
| Width Between Posts | D | 85 5/16" |
| Max. Lifting Height | E | 73 7/16" |
| Max. Locking Height | 72 11/16" | |
| Overall Height | F | 82 7/8" |
| Minimum Height | G | 4 15/16" |
| Max. Underneath Height | H | 69 1/2" |
| Max. Lock Underneath Runway | 66 3/4" | |
| Drive-Thru Clearance | I | 77" |
| Width Between Runways | J | 37" |
| Outside Edge of Runways | K | 74 7/16" |
| Gross Weight | 1,430 lbs | |
| Motor | 1.0HP,110V/60Hz |
Double-shaped columns are engineered to increase structural strength and load-bearing capacity, ensuring reliable performance under demanding workshop conditions.
